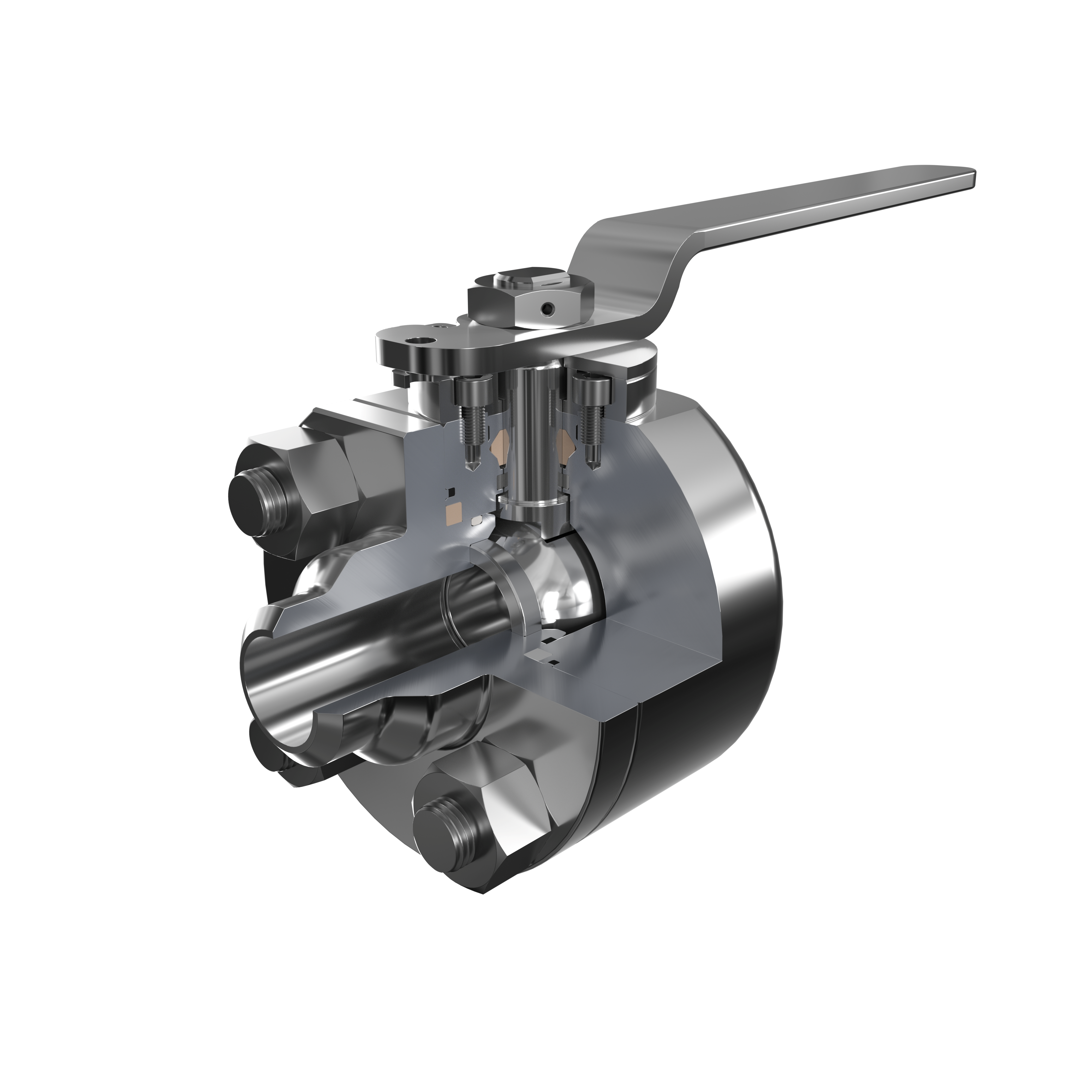

Floating
model H21 (Hydrogen)
| Applicable standards | API 6D Design according to ASME B16.34 or ASME VIII Div. 1 & 2 |
| Pressure Class Range | ANSI Class 150 lbs. to 1500 lbs. |
| Size Range | API 6D - from 1/2" to 8" |
| Ends design | Flanged (RF/RTJ) - ASME B16.45, ASME B16.47 or MSS SP-44 Compact (i.e. Norsok Standard L-005) Butt-Weld (ASME B16.25) and/or Butt-Weld + Pipe Hubbed according to client Clamp Special client's requirements |
| Body Design | Two Pieces |
| Closure Design | Bolted Closure or Fully welded |
| Ball support | Trunnion (small sizes < 4") - Support Plates |
| Seat design | Soft Sealing - Metal to Metal (c/w hardfacing) |
| Valve operation | Manual: Lever or Gearbox |
| Available Materials | UNS S31600/3, UNS S31254, UNS S20910 and UNS S66286. Proper material selection verifed by Valland material experts. NACE MR0175 according to client request. |
| Additional Features | Anti Blowout Stem, Antistatic Device Special gasket to avoid contamination from environment |
| Testing and Certification | Testing: High Pressure Gas, Pneumatic and Functional Test in hydrogen environment according to client specifcations API 598 - API 6D Fire testing: API 6FA, API 607, BS 6755 part 2, ISO 10497 Fugitive Emission Test: ISO 15848 - 1 & 2 SIL Certificate up to SIL 3 TR-CU PED 2014/68/UE Mod.H - UKCA - TSG (upon request) |
