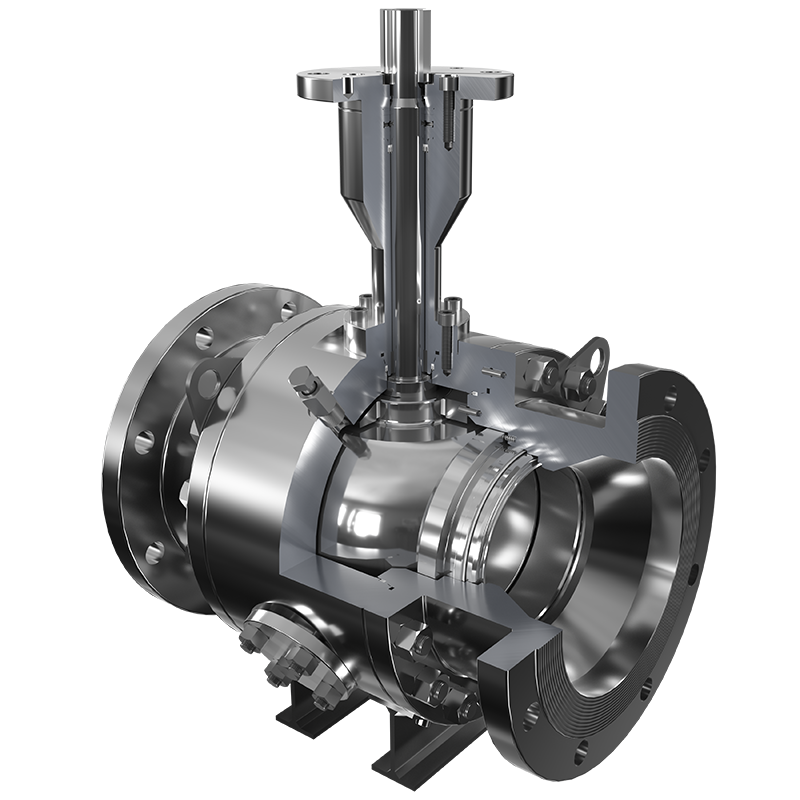

Cryogenic ball valve

Model A21C, A11C, A31C

Side Entry and Top Entry Design
Class 150 to Class 2500, Up to API 10000
Size Range 1/2” thru 24” (Class Dependent)
End Connection : Flanged, BW, SW
Floating and Trunnion, Full and Reduced Bore
Body Wall Thickness ASME B16.34, Forged or Cast Versions
Cryogenic tested to BS 6364 @ -196°C
Fire-Safe Design API 607
Live-Loaded Packing and Anti-Static Capable
Fugitive Emissions ISO 15848
Pressure Relief
Low Torque
PCTFE(KEL-F), TFM, CTFM, and Metal Seats Available
Custom Face-to-Face Lengths pup ends available per Customer Requirement
Special Temperature Range :- -200 deg C to +200 deg C
