Gate Valves

Model B11 – B21

The production of Through Conduit Gate Valves is a part of our core business. This kind of valve may belong to three main families:

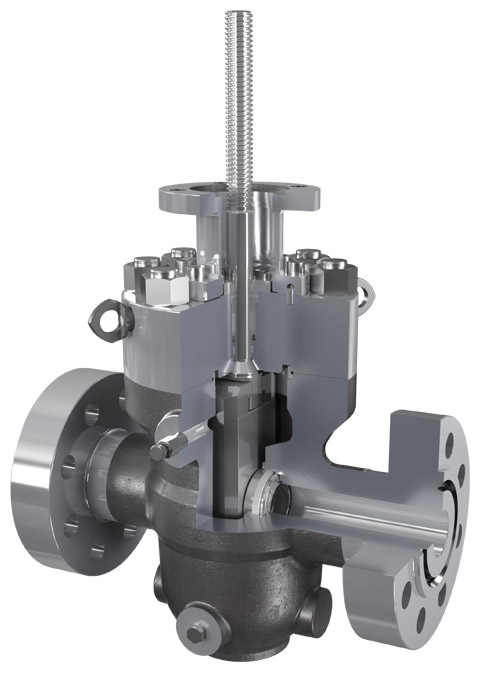

- Slab

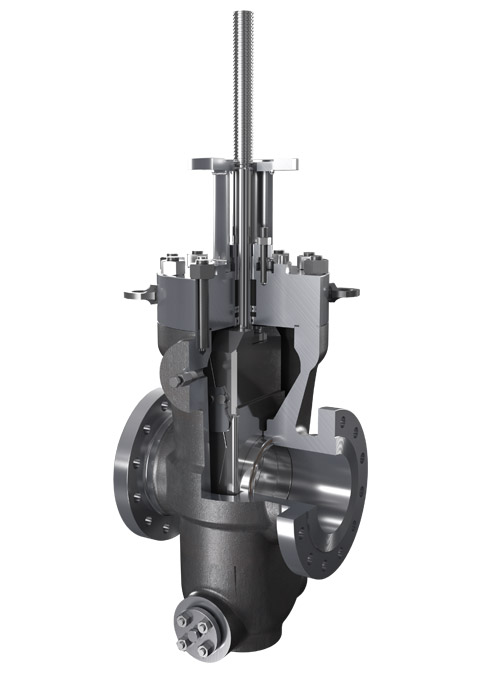

- Double Expanding

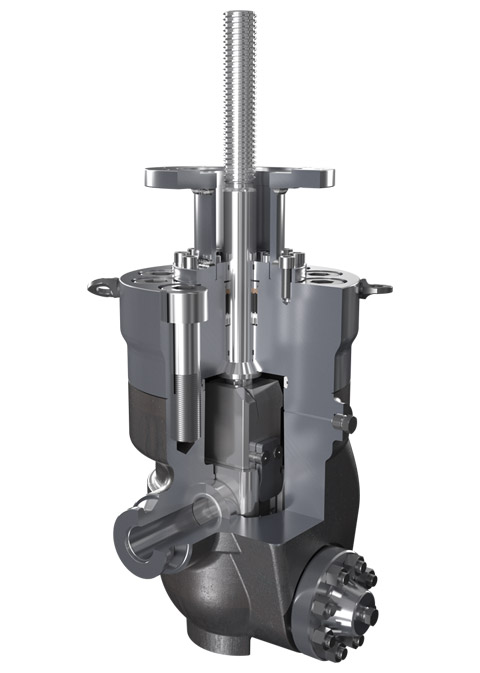

- Single Expanding

Each of these versions are fully internally engineered. Sizes covered: 1” to 56” for API 6D and 1.13/16” to 13.5/8” for API 6A. Class range going from 150 to 4500 lbs for ANSI and from 3000 to 20000 psi for API 6A. Valves can be manual or actuator operated.

Our valves can be supplied based on customer’s specifications with either cast or forged body and bonnet and a notable variety of material grades and ends.  With the back seat configuration of stem and bonnet the stem sealing can be maintained even with the valve in line and under pressure.

The Single Expanding Gate Valves and the Slab Gate Valves offer the advantage of a dimension and cost reduction, while the Double Expanding offers a high reliability on heavy duty. Our Double Expanding Gate Valve can be engineered to achieve DIB1. FEA is available on request.

Our valves can be designed for cryogenic service.

SIL certification has been achieved during Q1 2017.

Applicable Standards

Design: API 6D – API 6A – API 6DSS – ASME B16.34 – ASME VIII div.2

Fire testing: ISO 10497

Compact Flanges: Norsok Standard SL-005

PED: 2014/68/UE

NACE MR 0175 – ISO 15156-3



Materials Available

Low Alloy, CS, LTCS, SS, Super Duplex SS, 6MO, Inconel, Incoloy, Hastelloy, Monel, Titanium.

Internal Corrosion Resistant Alloy Welded Overlays are provided on Sealing Areas or on All Wetted Parts upon request on CS, LTCS and Low Alloy valves
